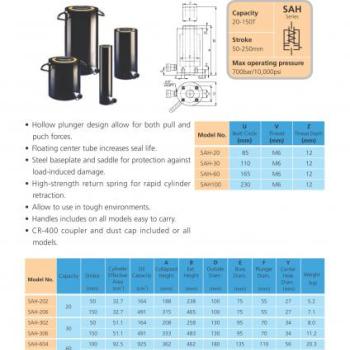

Aluminum alloy single-acting hollow hydraulic jack
-
Durable Steel Baseplate & Saddle – Provides superior protection against load-induced damage.
-
Built-in Safety Valve – Prevents accidental over-pressurization for safe operation.
-
Standard CR-400 Coupler & Dust Cap – Included with all models for quick setup and protection.
-
Ergonomic Handles – Attached to all models for convenient carrying and handling.
-
Hard-Coat Surface Finish – Enhances durability, resists wear, and extends service life.
-
Integral Stop Ring – Prevents plunger over-travel and withstands full cylinder capacity.
-
High-strength return spring ensures fast and reliable retraction
-
Hollow plunger design allows for both push and pull forces.

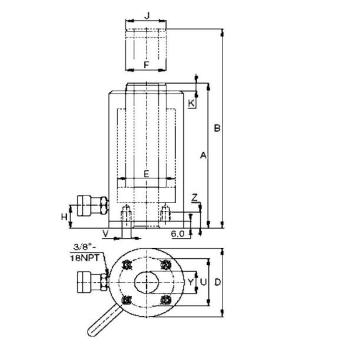

| Model | Capacity (ton) | Stroke (mm) | Outside Dia (mm) | Collapsed Height(mm) | Working Pressure(kg/c㎡) | Piston Area (c㎡) | Plunger(mm) | Wieght(kg) |
|---|---|---|---|---|---|---|---|---|
| SAH-202 | 20 | 50 | 100 | 188 | 700 | 32.7 | 27 | 5.2 |
| SAH-206 | 20 | 150 | 100 | 315 | 700 | 32.7 | 27 | 7.1 |
| SAH-302 | 30 | 50 | 130 | 208 | 700 | 51.1 | 34 | 8.0 |
| SAH-306 | 30 | 150 | 130 | 333 | 700 | 51.1 | 34 | 11.2 |
| SAH-604 | 60 | 100 | 180 | 362 | 700 | 92.5 | 56 | 20.3 |
| SAH-606 | 60 | 150 | 180 | 412 | 700 | 92.5 | 56 | 22.9 |
| SAH-1006 | 100 | 150 | 250 | 391 | 700 | 115.1 | 79 | 43.4 |
