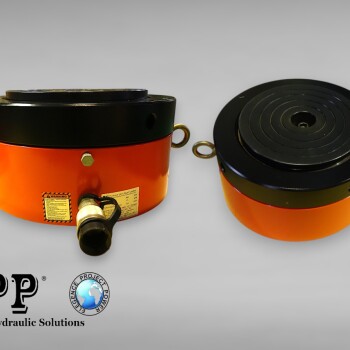

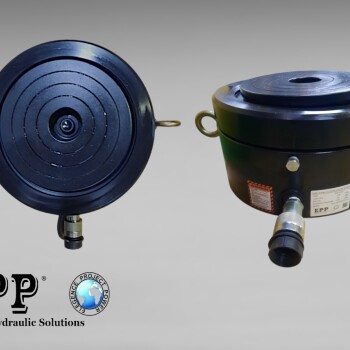

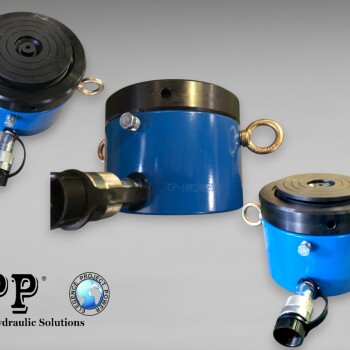

Extra-Thin Threaded Jack
Documents & Certificates
Manufacturing Features:
-
Designed for use in areas with limited space.
-
Mechanical safety lock ring with threaded design to sustain load.
-
5% swivel design to withstand side loading.
-
High-strength metal alloy provides superior durability.
-
Red visible marking ensures operation within piston range.
-
Overflow port functions as a stroke limiter.
-
Includes integral tilt saddles with maximum tilt angles up to 5°.
-
Wiper seal fitted to most models to prevent dirt ingress and extend cylinder life.
-
Isonite QPQ treatment included, enhancing durability, corrosion resistance, and heat resistance.
| Model | Capacity (ton) | Stroke (mm) | Outside Dia (mm) | Weight(kg) | Collapsed Height(mm) | Working Pressure(kg/c㎡) | Cylinder Effective Area (c㎡) | Saddle Dia(mm) |
|---|---|---|---|---|---|---|---|---|
| PLP-602 | 60 | 50 | 140 | 15 | 125 | 700 | 86.6 | 96 |
| PLP-1002 | 100 | 50 | 175 | 26 | 137 | 700 | 146.8 | 126 |
| PLP-1602 | 160 | 45 | 220 | 44 | 148 | 700 | 231.3 | 160 |
| PLP-2002 | 200 | 45 | 245 | 57 | 155 | 700 | 285.6 | 180 |
| PLP-2502 | 260 | 45 | 275 | 74 | 159 | 700 | 366.8 | 200 |
| PLP-4002 | 400 | 45 | 350 | 134 | 178 | 700 | 559.5 | 250 |
| PLP-5002 | 520 | 45 | 400 | 189 | 192 | 700 | 730.6 | 290 |
