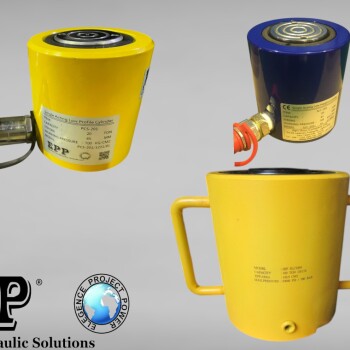

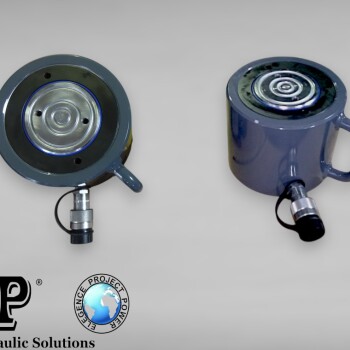

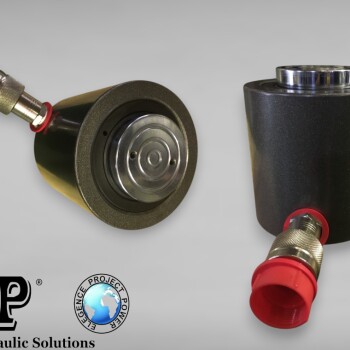

Single Acting Low Height Cylinder
Single Acting Low Height Cylinder
-
Lightweight, low-profile design for use in confined spaces.
-
Grooved plunger end with threaded holes for mounting tilt saddles.
-
ECR-400 coupler and dust cap included with all models.
-
Plunger wiper reduces contamination, extending cylinder life.
| Model | Capacity (ton) | Stroke (mm) | Outside Dia (mm) | Collapsed Height(mm) | Working Pressure(kg/c㎡) | Piston Area (c㎡) | Plunger(mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|
| PCS-101 | 10 | 38 | 69 | 88 | 700 | 14.5 | 38.1 | 2.7 |
| PCS-201 | 20 | 45 | 92 | 98 | 700 | 28.7 | 50.8 | 50 |
| PCS-302 | 30 | 62 | 101 | 117 | 700 | 42.1 | 66.5 | 6.8 |
| PCS-502 | 45 | 60 | 124 | 122 | 700 | 62.1 | 69.8 | 10.0 |
| PCS-1002 | 90 | 57 | 165 | 141 | 700 | 126.7 | 92.2 | 20.7 |
